| Performance Item | Unit | Property Value | Measurement Method |
|---|---|---|---|
| Sheet Resistance | Ω/sq | 10⁵~10⁹ | ASTM D991 |
| Transmittance | % | 99 | ASTM D1003 |
| Hardness | H | 9 | ASTM D3306 |
| Thermal Shock | % Change | ΔR ≤ ±5 | -40℃ ↔ 105℃ |
| Reliability | % Change | ΔR ≤ ±5 | 60℃/90%, 500hr |

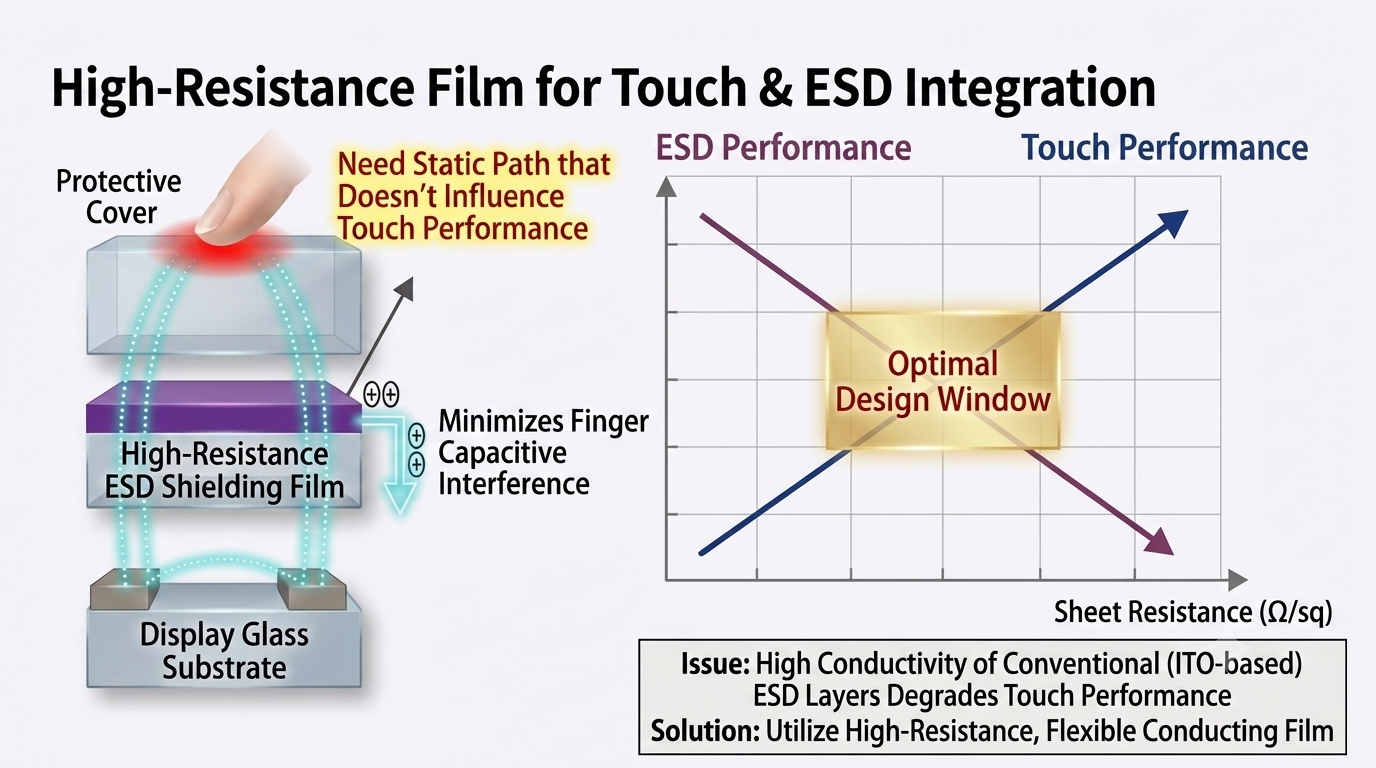

Protects circuits by discharging static electricity
Implements high touch sensitivity

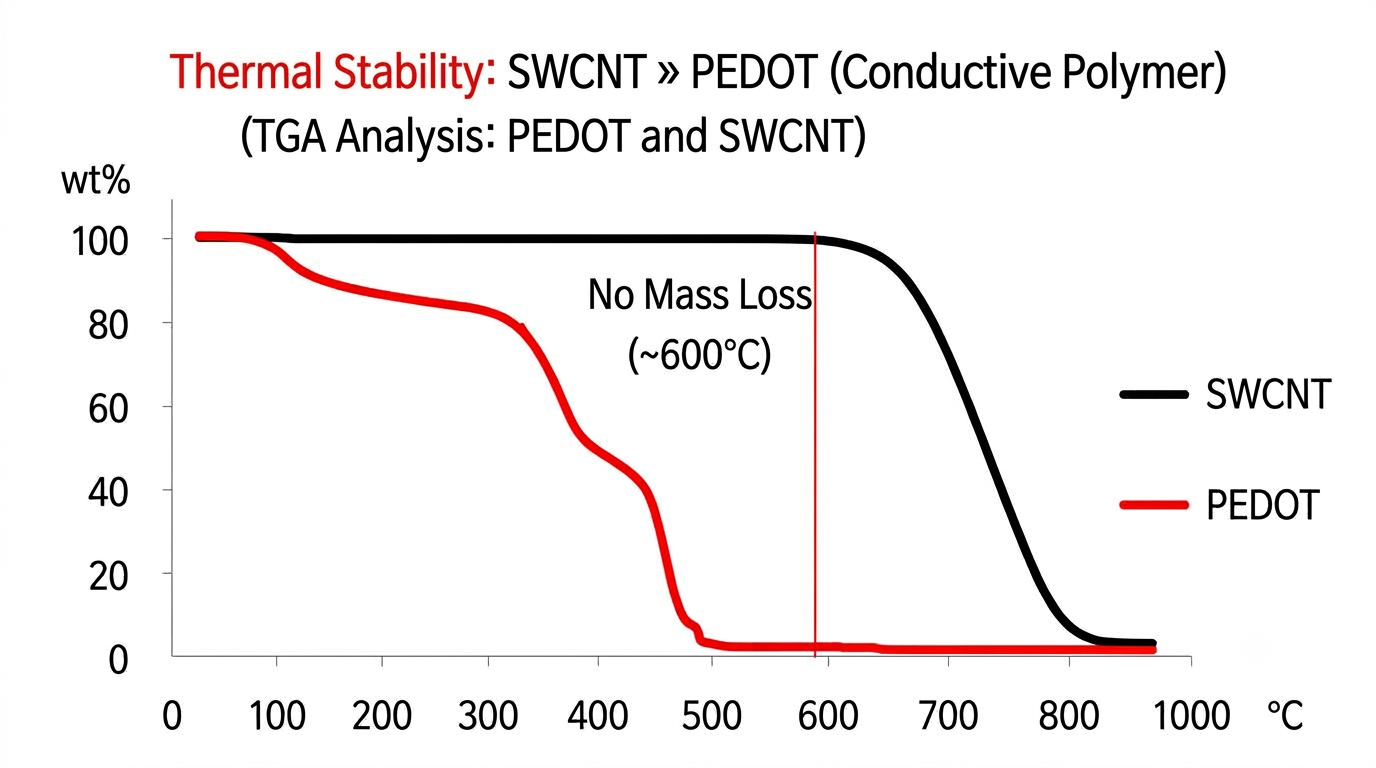

Stable performance in high-temperature environments
Clear image quality
To maximize process efficiency, the next-generation display manufacturing industry is shifting from the conventional complex photomask process to inkjet printing, which precisely sprays material only onto the areas needed.
| Category | Screen Printing | Inkjet Printing |
|---|---|---|
| Process Method | Contact type | Non-contact type |
| Material Efficiency | Low | Very high |
| Process Efficiency | Low | Very high |
| Main Drawback | Mask cleaning and replacement costs | Technical hurdles such as nozzle clogging |
| Coating Method |
|
|
| Demand | Details |
|---|---|
| Overcoming physical limitations of space | Modern architecture, interior, and mobility design require maximizing a sense of openness |
| Responding to energy efficiency and environmental regulations | Technology to optimize indoor temperature is essential due to strengthened carbon neutrality and energy-saving regulations |
| New user experience (UX) and interface expansion | Realizing ambient displays that freely control transmittance and reflectance |
