We supply materials with excellent electrical conductivity that overcome structural instability for high-performance batteries.
01
SWCNT Water Dispersion for Anode Materials

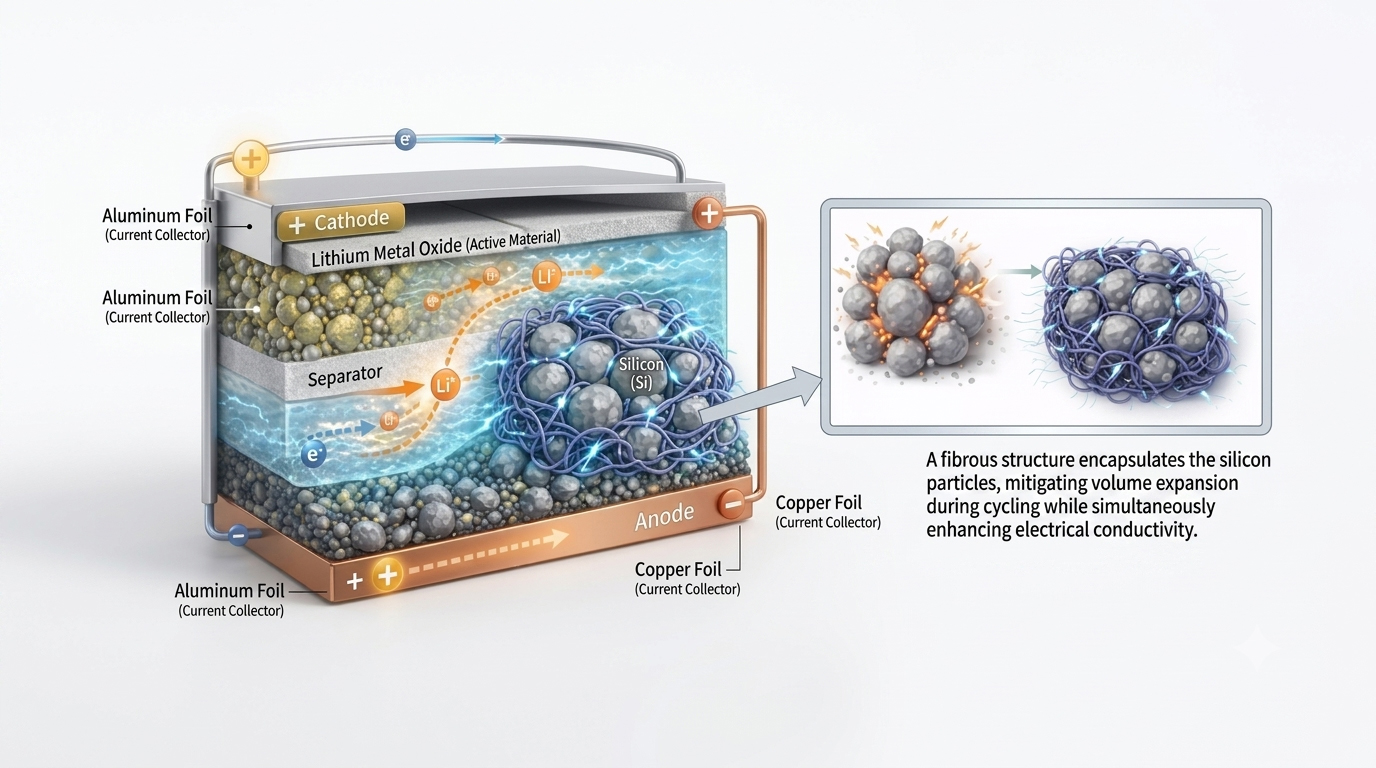

The market is increasingly adopting silicon anode materials to improve the energy density of secondary batteries.
Extreme volume expansion of about 300% during charge/discharge causes the electrode structure to collapse. SWCNT is emerging as a material to address this.
SPL
Ref Dispersion
NS Dispersion
Composition
SWCNT [wt%]
0.4
1.5
Dispersant [wt%]
0.6
2.4
Solid Content [wt%]
1.01
3.62
Physical Properties
Viscosity [cP]
2,719
2,800
D50 [um]
0.03
0.03
Initial Characteristics
Charge Capacity [mAH/g]
677.2
677.5
Discharge Capacity [mAh/g]
622.4
629.4
Initial Efficiency [%]
91.9
98.9
Rate Characteristics
0.2C/0.2C [%]
100
100
0.5C/0.2C[%]
99.3
98.6
1.0C/0.2C[%]
98.8
98.8
2.0C/0.2C[%]
97.2
97.8
3.0C/0.2C[%]
92.7
93.0
Room Temperature Lifespan
@300cy[%]
92.1
92.3
<Results of a comparative test of our SWCNT prototype for anode materials versus a competitor's product>
02

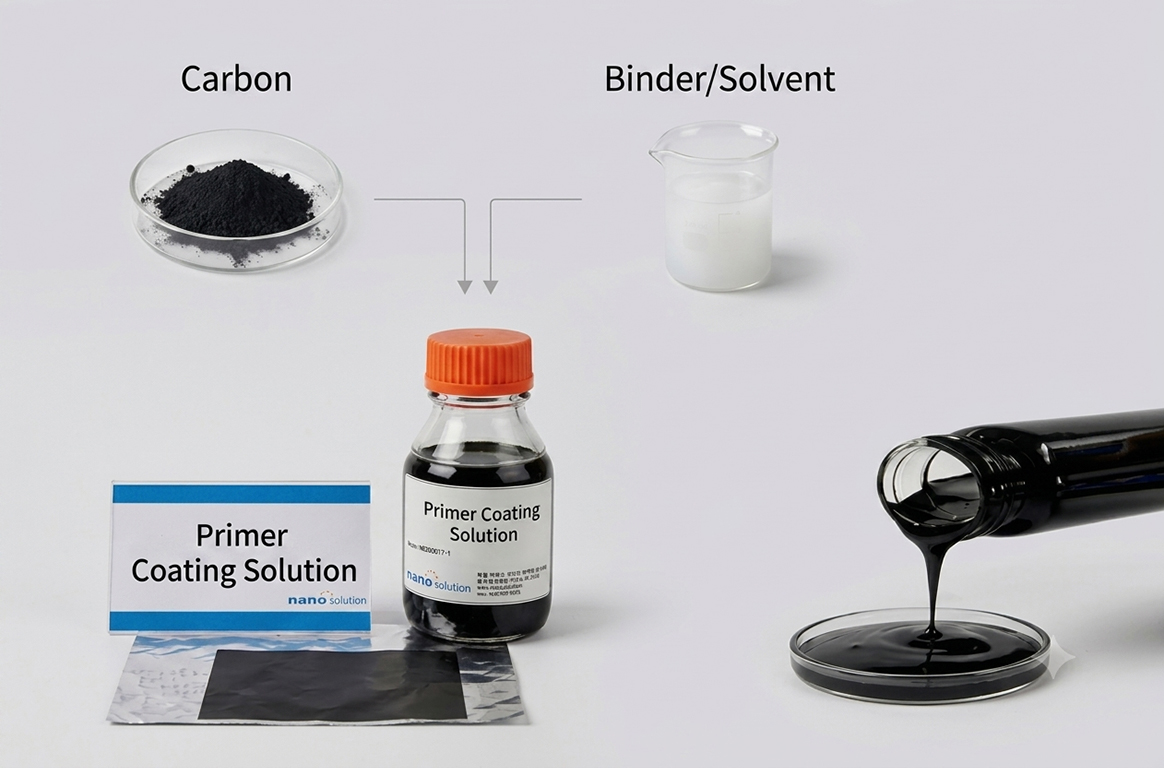

Primer Coating Solution

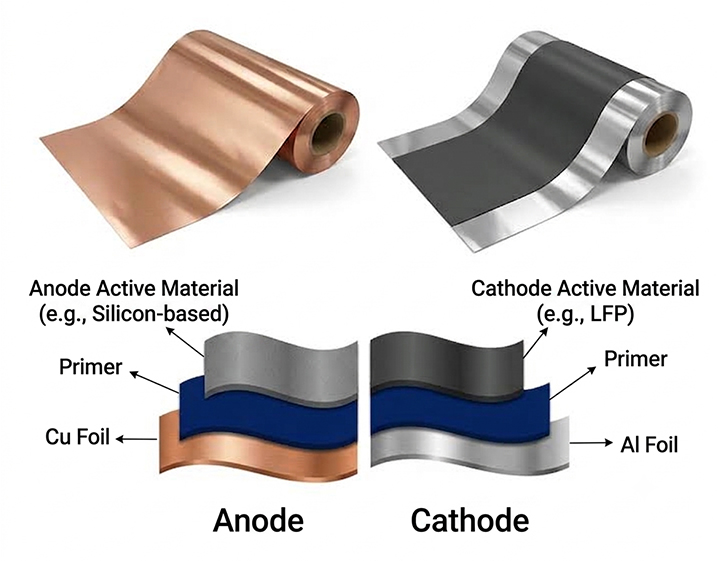

Primer coating is a key material that improves various performance aspects of secondary batteries and enhances the completeness of next-generation batteries
Dramatically lowers the interfacial resistance between the current collector and active material during fast charging (improving charging efficiency and speed)
Contributes to extending battery lifespan (improved resistance to physical expansion and contraction)
Supports optimization of energy density
Before Coating
After Coating
21.4 gf/mm
33.2 gf/mm
Improves battery lifespan through strong adhesion between the active material and the current collector (coated foil)
